Wheel Alignment Specifications

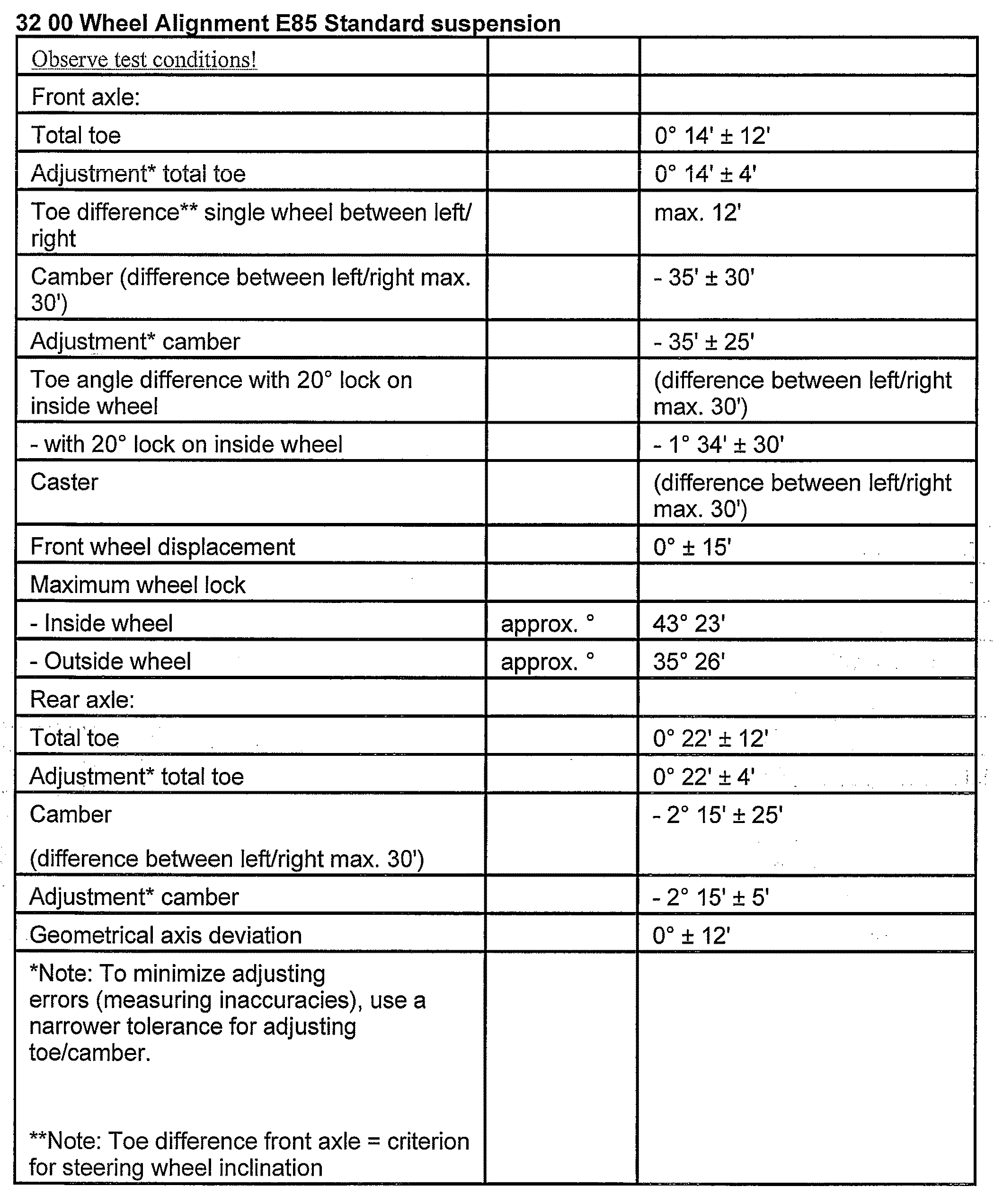

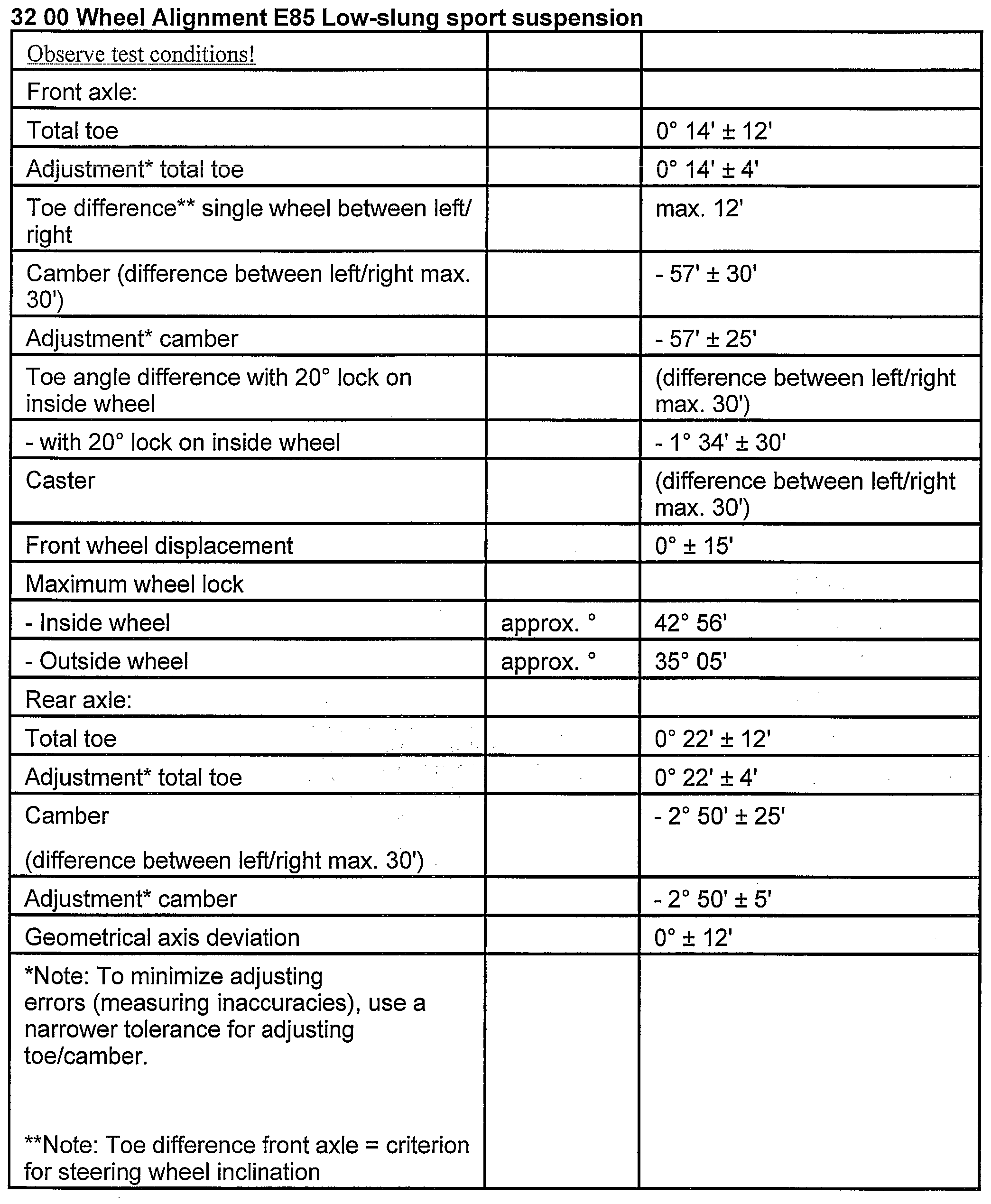

Car loaded down to normal position. Vehicle with complete equipment for normal operation with: 2 x 68 kg on front seats (seats in central position); 1 x 14 kg in luggage compartment (centre) and full fuel tank. For wheel alignment specifications, see Fig 1 and Fig 2
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
