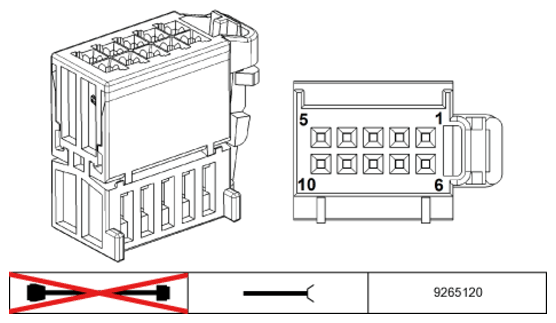

Trailer Module A255*3B Connector End View
Pin Assignments At Plug Connector A255*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | E | Signal Brake light | Solder connector |
| 3 | E/A | K-CAN2 bus | Body CAN2 bus connection |
| 4 | E/A | K-CAN2 bus | Body CAN2 bus connection |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E | Signal Flashing indicator lamp | Solder connector |
| 9 | -- | Not used | |
| 10 | -- | Not used |
