Functional description
The TV function is realized in the video module (VM). The TV picture is displayed on the Central Information Display (CID) and, depending on the vehicle equipment, on the rear monitor.
The video module modulates the high-frequency aerial signal (HF signal) that is fed over two or three aerial inputs, to a digital baseband signal.
During the process, both of the inputs are used for the reception of the actual dialled-in programs in the video module with the two aerial inputs. This mechanism, called MRC (maximum ratio combining), combines both reception paths. With it, an optimal mobile receiving power is achieved. Station searches are not performed in the background while driving (list of stations update). The video module performs the station searches when in standstill (driving speed below 5 km/h) during suitable reception conditions.
During suitable reception conditions, the video module with three aerial inputs uses the third aerial input for the station search in the background and thereby continuously updates the list of stations. In the process, the allocation between the aerial input and the reception paths for the station search (MRC function) of the video module is continuously reconfigured and is not firmly assigned.
All video modules try to maintain the currently selected station when changing to another service area (called: DAB/FM changeover). For the video module with two aerial inputs, the DAB/FM changeover can lead to a momentary break in reception due to the system architecture. For a video module with three aerial inputs, the DAB/FM changeover is virtually unnoticeable for the user.
For the Japanese version, the service segment (full segment, 1 segment) is also supported in the ISDB-T.

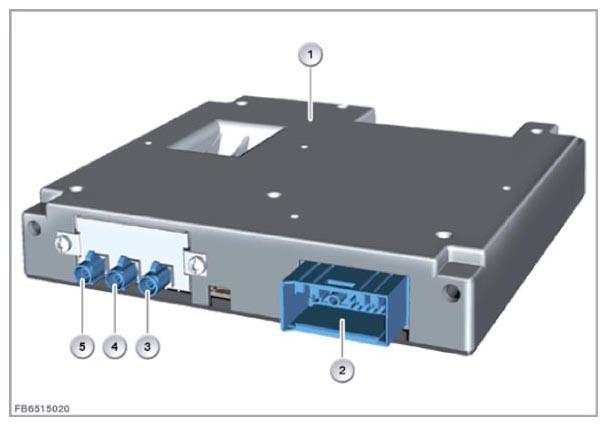

| Item | Explanation |
|---|---|
| 1 | Video module (VM) |
| 2 | 12-pin with MOST interface plug connection |
| 3 | Aerial connector for TV aerial (TV 1) |
| 4 | Aerial connector for TV aerial (TV 2) |
| 5 | Aerial connector for TV aerial (TV 3) |

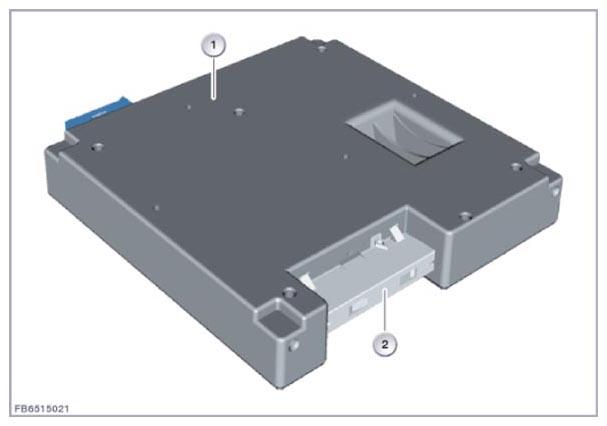

The following graphic illustrates the cover for the insertion slot of the Smartcard on the rear side of the video module.
| Item | Explanation |
|---|---|
| 1 | Video module (VM) |
| 2 | Cover for the insertion slot of the Smartcard |
