Airbag front sensor

Airbag front sensors are installed on the left and right supports of the front panel. The 2 airbag front sensors are longitudinal acceleration sensors. The sensors detect head-on or rear-end collisions.

The following graphic indicates the installation location of the airbag front sensor, using the example of the left side of the F30.

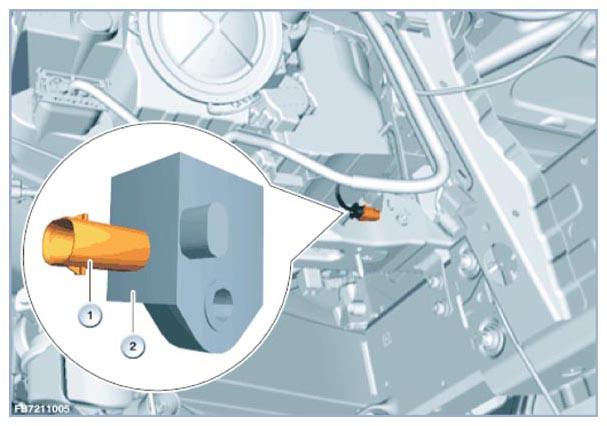

Fig 1: Airbag Front Sensor And Two Pin Plug Connection
G10092893Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 two-pin plug connection
2 Airbag front sensor
