Conversion Of Coil-Spring Assembly To Connector System "MQS"

Following steps are important for the conversion:

1. Remove cladding of short earth cable.

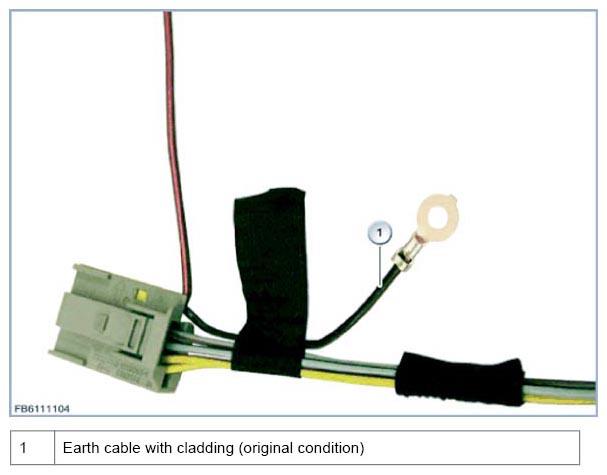

   Fig 1: Identifying Short Earth Cable With Cladding (Original Condition)

   Courtesy of BMW OF NORTH AMERICA, INC.

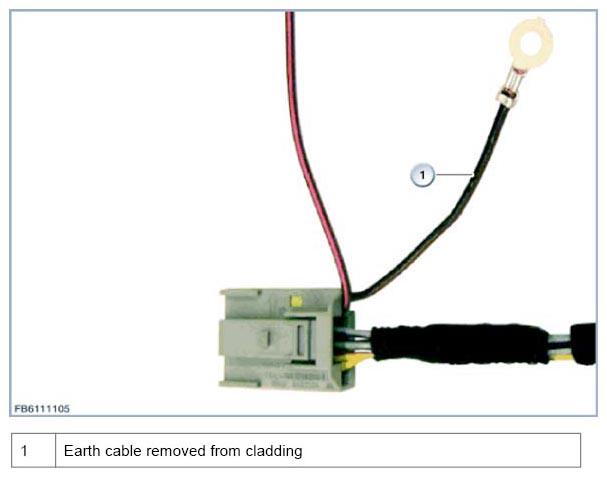

   Fig 2: Identifying Earth Cable With Cladding

   Courtesy of BMW OF NORTH AMERICA, INC.
2. Fit the cable and plug in.
3. Establish tension relief as shown in the following graphic:

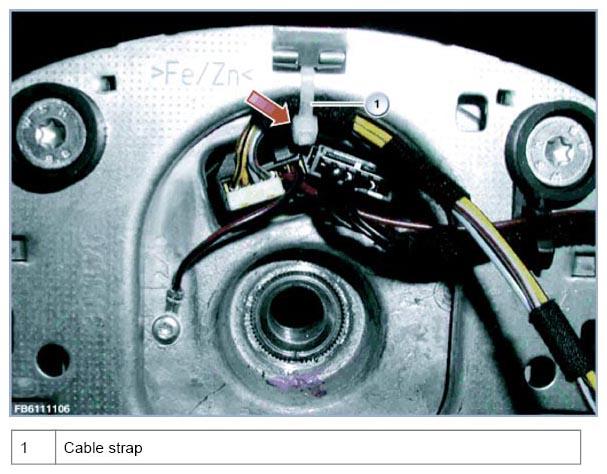

   Fig 3: Locating Cable Strap

   Courtesy of BMW OF NORTH AMERICA, INC.

   Attach cable ties as follows:

   • Cut end faces downwards.
   • The part of cable between the coil-spring assembly and cable tie is not under tension (loop greater than 5 mm).
