32 41... Instructions For Removing And Installing Ear Clips

Special tools required:

• 32 1 260

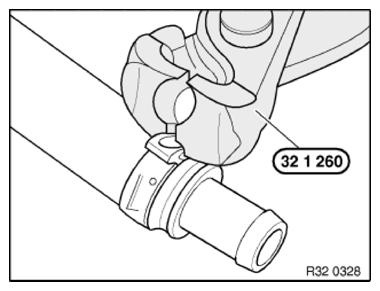

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

Fig 1: Removing Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

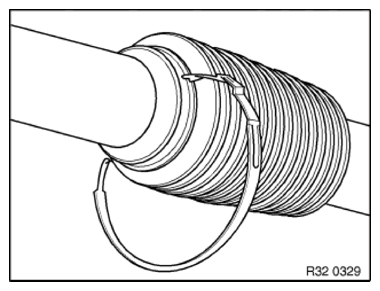

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Fig 2: Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

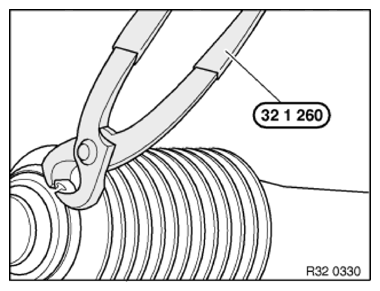

Attach hook fastener and press ear together with special tool 32 1 260 .

Fig 3: Pressing Ear Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

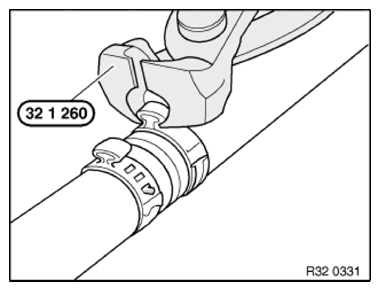

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

Fig 4: Pressing Ear Together Using Cutting Diagonal Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Ear Clip Gap

Courtesy of BMW OF NORTH AMERICA, INC.
