32 13 650 Removing And Installing/Replacing EH Converter For Servotronic

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Disconnect plug connection (1).

Release screws (2).

Remove EH converter (3).

Installation:

Clean side return orifice with compressed air.

Align EH converter (3) to opening in power steering gear, press by hand into power steering gear up to stop, insert screws (2) and tighten down.

Tightening torque 32 00 4AZ .

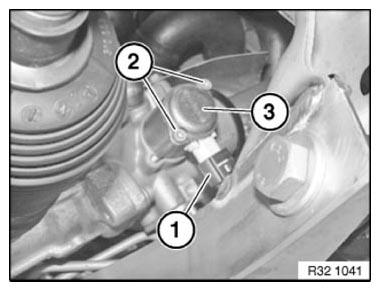

Fig 1: EH Converter, Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
