7.1. Side View
The Side View Camera function was first introduced in a BMW with the F01/F02 and is now installed in the F10. This feature makes it easier for the driver to pull into roads or tight intersections in which the driver's view to the side is obstructed. The function is implemented by two digital cameras installed on the right and left front wheel arches.
The driver can activate the Side View using a button in the control panel next to the gear selector lever or with the iDrive controller.

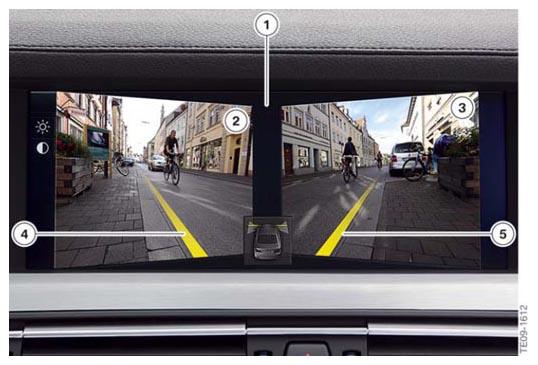

| Index | Explanation |
|---|---|
| 1 | Split screen images from the bumper cameras |
| 2 | Image from the bumper camera in the left wheel arch |
| 3 | Image from the bumper camera in the right wheel arch |
| 4 | Projected front of vehicle, view to left |
| 5 | Projected front of vehicle, view to right |
The video camera images are shown in the CID in a split screen display up to 30 km/h. Like the top and rear view cameras, the two bumper cameras send their signals to the TRSVC control unit via LVDS data lines. The signals are then forwarded via CVBS (composite video) lines to the video switch (VSW) and to the CIC. The CIC transmits the image data via LVDS data lines to the CID where it is displayed.
Side View Camera (option 5DK) can only be installed in conjunction with the rear view camera (option 3AG) and is part of the ZCE Camera Package.
