2.5. Sliding/tilting sunroof: Notes
An electrical glass sunroof is standard equipment on all F10 models.
It is designed as a slide/tilt sunroof system that is operated from the interior.

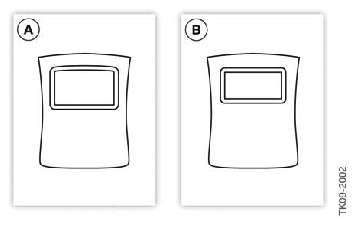

| Index | Explanation |
|---|---|
| A | Contour roof |
| B | Standard slide/tilt sunroof |
As with the F01, the front edge of the glass panel runs parallel to the windshield/roof edge (contour roof) and thus makes the appearance of the complete vehicle more harmonious. The larger glass area gives the passenger compartment a bright, spacious feeling. Thus the sensation of space is improved.
The glass panel and the sliding trim are all-electric and are operated using a switch in the roof function center (FZD).
The usual control and operation logic for the slide/tilt sunroof is maintained:
- To open the roof-
Push the switch to the rear
- To close the roof-
Push the switch forward
- Set roof to vent position-
Push the switch up.
The operation and control logic for opening the sliding trim is similar to that of the panorama-roof configurations. The operating logic corresponds to the direction of movement of the components and thus can be understood easily by the customer.
The sliding trim is integrated in the interior design of the headlining, providing a high-class interior effect.
To eliminate the risk of possible injuries, an anti-trap mechanism for the glass panel and for the gear mechanism cover is implemented over the entire travel path complying with the local legal requirements.
