Transmission Tools (04 14 12)

Publication date: 2012-06-01
Reference number: 04 14 12

TRANSMISSION TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 14 12, Date of Issue: June 01, 2012

BMW:	F01; F02; F06; F07; F10; F12; F13; F25; F30; E84; E70; E71 with GA8HP45Z transmission
GROUP:	Tools and Equipment

SUBJECT

Transmission Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC). All prices in this bulletin are introductory prices and are only valid at the time of initial publication.

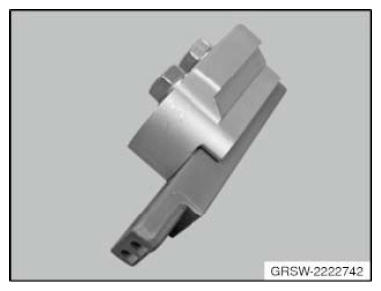

Brace

Order P/N 83 30 2 222 742

Price - $79.38

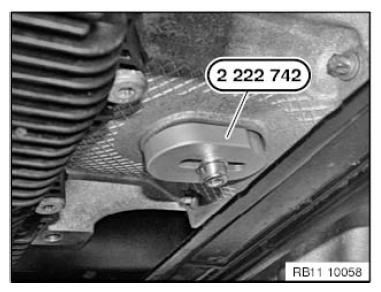

The brace is used to secure the crankshaft in place with the transmission installed. The vibration damper may then be removed. For complete repair information on this tool, refer to ISTA Repair Manual (E84 N20) section 11 23 010.

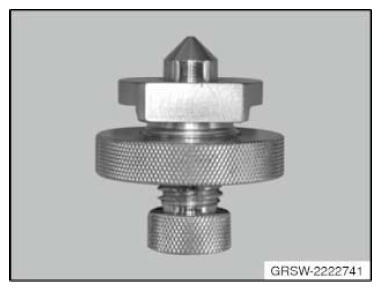

Brace

Order P/N 83 30 2 222 741

Price - $22.13

The brace is used to secure the torque converter in place when removing the transmission. For complete repair information on this tool, refer to ISTA Repair Manual (E84 N20) section 24 00 033.
