Mechanical Troubleshooting Manual For The Tank Leak Diagnosis: Notes

This troubleshooting manual indicates all fault locations that are currently known where a leak might occur.

Check connections on the fuel tank and lever sensor for leaks.

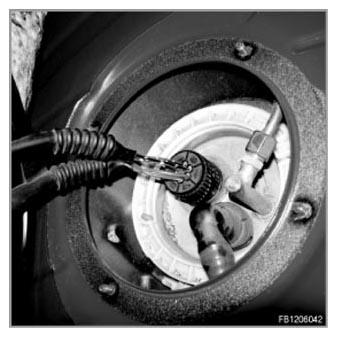

Fig 1: Checking Connections On Fuel Tank And Lever Sensor For Leaks

Courtesy of BMW OF NORTH AMERICA, INC.

Check the connections on the carbon canister and check the carbon canister for leaks, if applicable.

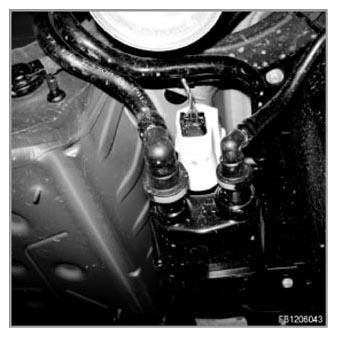

Fig 2: Checking Connections On Carbon Canister

Courtesy of BMW OF NORTH AMERICA, INC.
