86 21... Removing roof railing: Notes

NOTE: The text describes how to remove the roof railing at one mounting point as an example. Proceed in the same way for the other mounting points.

Open cover (1) and fold down.

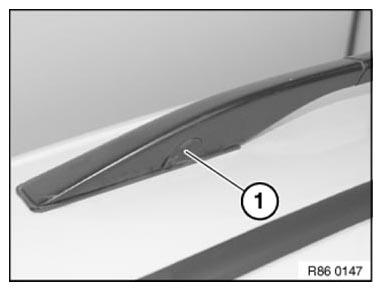

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

After releasing three retaining screws, lift off roof railing (2).
