Roof Antenna
The roof antenna housing is always fitted regardless of the equipment options on the vehicle.
The roof antenna includes the following components:
- Mobile phone antenna
- Telematics Control Unit (TCU) telephone antenna
- GPS antenna
- SDARS satellite radio reception antenna

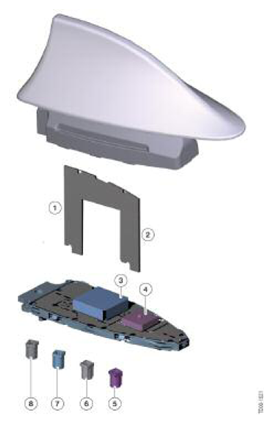

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Telephone antennas for telematics control unit (TCU) |
| 2 | Telephone antennas for mobile phone |
| 3 | GPS antenna |
| 4 | SDARS antenna for satellite reception |
| 5 | SDARS signal, satellite and terrestrial (violet connection) |
| 6 | Telephone signal: mobile phone; metal color connector; Bordeaux violet coding connector |
| 7 | GPS signal (blue color connector) |
| 8 | Telephone signal: TCU; metal color connector; grey color coding connector |
