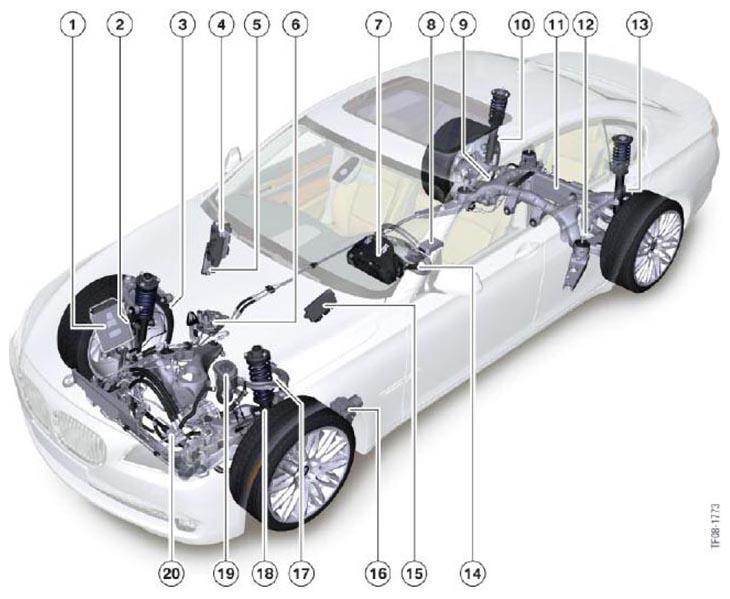

Components of Active Roll Stabilization with VDC
ACTIVE ROLL STABILIZATION WITH VDC COMPONENT REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | DME |
| 2 | EDC_SVR |
| 3 | Ride-height sensor, front right |
| 4 | Front power distribution box |
| 5 | VDM |
| 6 | ARS valve manifold |
| 7 | Instrument cluster |
| 8 | ICM |
| 9 | Ride-height sensor, rear right |
| 10 | EDC_SHR |
| 11 | Rear-suspension hydraulic motor |
| 12 | Ride-height sensor, rear left |
| 13 | EDC_SHL |
| 14 | SZL |
| 15 | ZGM |
| 16 | DSC |
| 17 | Ride-height sensor, front left |
| 18 | EDC_SVL |
| 19 | Hydraulic fluid reservoir |
| 20 | Front-suspension hydraulic motor |
