IHKA Components: Notes

To optimize the system package, promote comfort and reduce noise level in the passenger compartment, the blower fan for the climate control system has now been placed in the engine compartment.

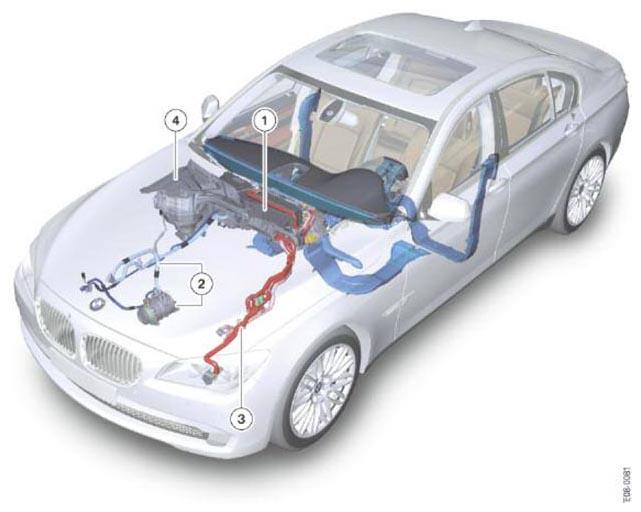

Index	Explanation
1	F01/F02 climate control system
2	A/C compressor with intake and pressure lines
3	Coolant pipes and double solenoid valves for the heater core
4	Fan for climate control system with fresh-air intake in engine compartment
