52 26... Replacing microswitch for backrest angle adjustment
WARNING: This page is about a different car, the 2018 BMW X5, 2017 BMW X5, 2016 BMW X5, 2015 BMW X5, and 2014 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BACKREST COVER with upholstery

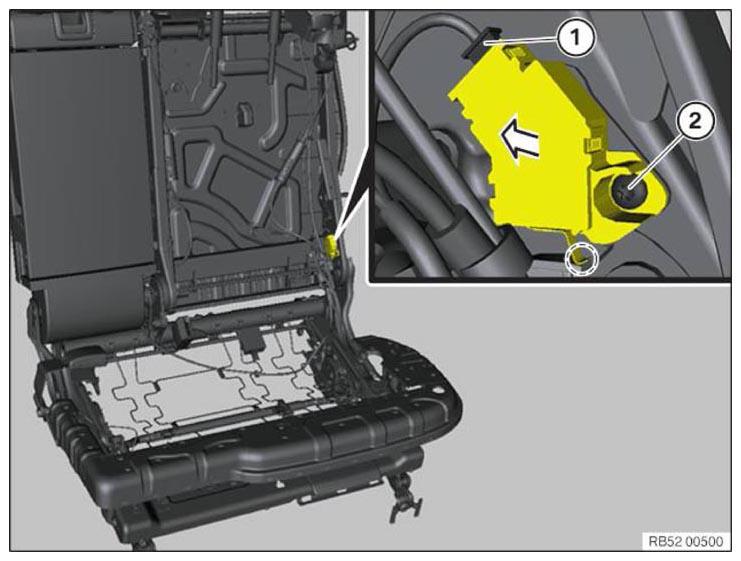

Unfasten plug connection (1) and disconnect.
Release screw (2).
Carefully extract microswitch in direction indicated by arrow.
Installation note:
Ensure that the contact spring seats correctly in the indicated area.
Ensure correct cable routing.
