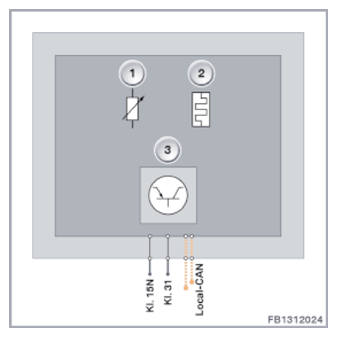

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The diesel particulate sensor consists of a measuring probe and evaluation electronics. The two parts are connected by a cable and cannot be separated.
The evaluation electronics is connected to a local CAN bus.
The front power distribution box supplies the diesel particulate sensor with terminal 15N.
| Item | Explanation |
|---|---|
| 1 | Measuring probe of diesel particulate sensor |
| 2 | Heating element |
| 3 | Evaluation electronics |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 15N | Terminal 15 after-run, supply voltage |
| Kl. 31 | Terminal 31, ground |
| Local-CAN | Local CAN bus |
