Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The fuel pressure sensor delivers a voltage signal to the DDE. A diaphragm in the fuel pressure sensor channels the fuel pressure which is converted into a voltage signal by 4 pressure-sensitive resistors.
The fuel pressure and temperature sensor contains a temperature-dependent resistor that protrudes into the fuel and reaches its temperature. The resistor has a negative temperature coefficient (NTC). The resistance is less as the temperature increases.
The resistance changes from 75.5 kΩ to 87.6 Ω temperature-dependent, which corresponds to a temperature of -40 °C to 120 ° C.

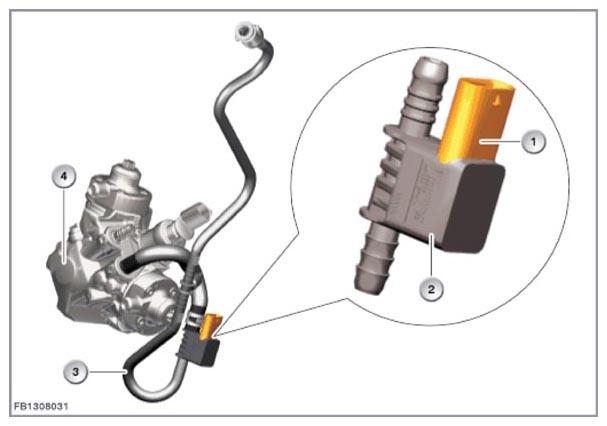

| Item | Explanation |
|---|---|
| 1 | 4-pin plug connection |
| 2 | Fuel pressure and temperature sensor |
| 3 | Fuel delivery line |
| 4 | High pressure pump |
