0316 Release tool

0495398 610316 Release tool MP

NOTE: (Release tool for flat spring contacts with double retaining tab "SPT 4.8" "JPT 2.8") Replaces special tool 61 1 136 from 09/2005 [Released]

Storage Location

M22 x 205

SI number

02 05 05 (217)

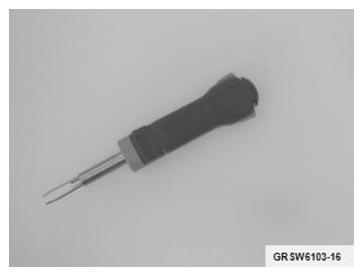

Fig 1: Identifying Release Tool (0495398)

Courtesy of BMW OF NORTH AMERICA, INC.
