Indication of System Operability

ACSM system operability is indicated by the airbag warning lamp (AWL) going out in the instrument cluster.

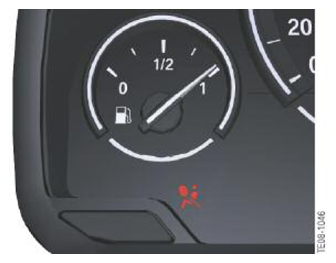

Fig 1: Identifying Airbag Warning Lamp
G06925574Courtesy of BMW OF NORTH AMERICA, INC.
