13 62 592 Removing and installing/replacing pressure sensor on right intercooler (N63)

Necessary preliminary tasks:

• Read out fault memory of DME control unit.
• Switch off ignition
• Remove intake duct. See 13 REMOVING INTAKE DUCT (N63) .

Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).

Detach A/C line from holder.

Unscrew left and right bolts.

Tightening torque: 51 71 4AZ .

Remove cross-brace (1).

Fig 1: Locating Transverse Reinforcement Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Release screws (2).

Tightening torque: 13 62 7AZ .

Pull pressure sensor (3) out of right intercooler.

Installation:

Replace sealing ring on pressure sensor.

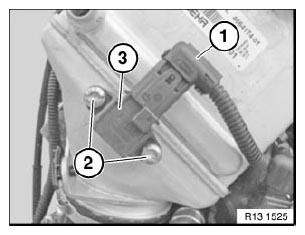

Fig 2: Identifying Pressure Sensor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Now clear the fault memory.
