Installing air conditioning compressor
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Feed the air conditioning compressor in and protect it from falling.
- Replace the sealing rings with the special tool 0 496 714 (00 9 030)
.
Parts: Sealing ring
- Replace the guide sleeves using special tool 2 298 505
.
Parts: Guide sleeves

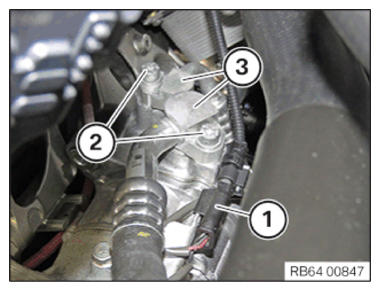

- Attach the refrigerant lines to the air conditioning compressor (3).
- Tighten down screws (2).
- Connect connectors (1) and lock.

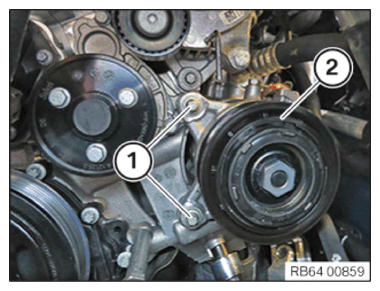

- Position the air conditioning compressor (2) on the component carrier.
- Tighten the screws (1).
