Installing the right engine bulkhead

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

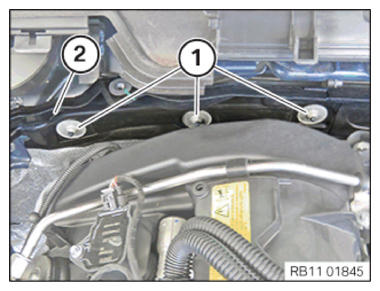

Position the engine bulkhead (2).
Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Engine bulkhead to bulkhead
Sheet metal nut	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

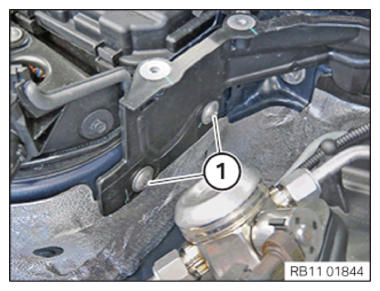

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Engine bulkhead to body
M8 x 18	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
