Remove air conditioning compressor
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
External damage to air conditioning compressor.
Excessive force applied during removal will result in damage to the air conditioning compressor.
External damage to air conditioning compressor.
Excessive force applied during removal will result in damage to the air conditioning compressor.
- Remove the air conditioning compressor without damaging it and without applying external force.
- Avoid impacts/knocks to plastic belt pulley (caused by tools, contact with base).
- Return faulty air conditioning compressors in their original packaging only.

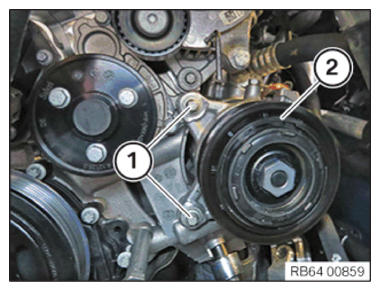

- Loosen screws (1).
- Detach the air conditioning compressor (2) from the component carrier and protect it from falling.

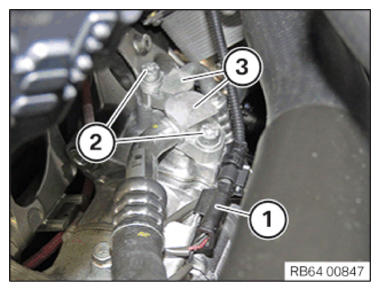

- Unlock and disconnect connector (1).
- Unscrew the bolts (2) and disconnect the refrigerant lines (3).
- Guide the air conditioning compressor (3) out towards the front top.
