Installing The Center Underbody Protection

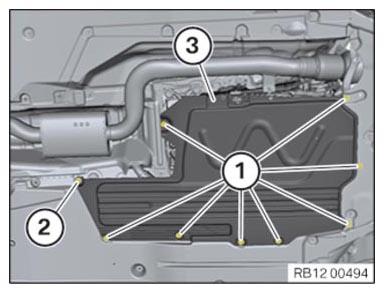

- Insert the central underbody protection (3) below the front underbody protection.
- Attach the central underbody protection (3) to the holder and turn anti-clockwise.
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATION
Underbody protection/underbody planking/heat insulation Screw not metric thread Tightening torque 3 Nm Screw M6 Tightening torque 8.8 Nm Nut Tightening torque 2.5 Nm - Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Underbody protection/underbody planking/heat insulation | ||
| Screw not metric thread | Tightening torque | 3 Nm |
| Screw M6 | Tightening torque | 8.8 Nm |
| Nut | Tightening torque | 2.5 Nm |
