Installing The Rear Timing Case Cover
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.

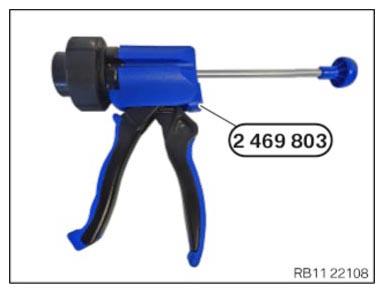

- Have the special tool 2 469 803
ready.NOTE: TECHNICAL INFORMATION

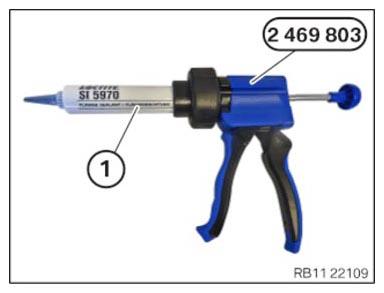

For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) . - Position the sealing compound (1) as shown on the special tool 2 469 803. SEALING COMPOUND SPECIFICATION
Loctite 5970 liquid sealing compound
Processing time <10 minutes at room temperature50 ml, Cartridge 83190404517 NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.- Do not use any metal-cutting tools.
NOTE: TECHNICAL INFORMATION

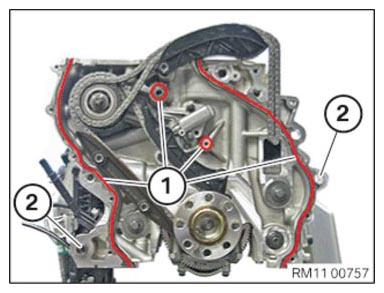

The sealing surfaces must be free of oil, grease and cleaning agents. - Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470).
- Clean the sealing surface (1) with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 - Check the fitting sleeves (2) for a correct fit and damage, replace if necessary.NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.- Do not use any metal-cutting tools.
NOTE: TECHNICAL INFORMATION

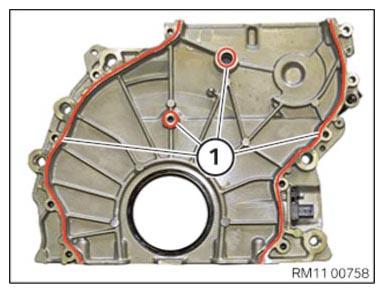

The sealing surfaces must be free of oil, grease and cleaning agents. - Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470).
- Clean areas (1) with the brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly. - Apply liquid sealing compound with a strong sealing bead of 1.5 mm to 2.0 mm in areas (1).

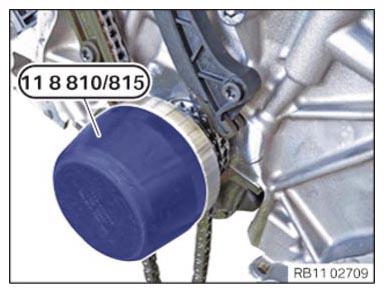

- Install special tool 0 496 137 (11 8 815)
on the crankshaft.
- Carefully mount the timing case cover and position it correctly at the lining sleeves.

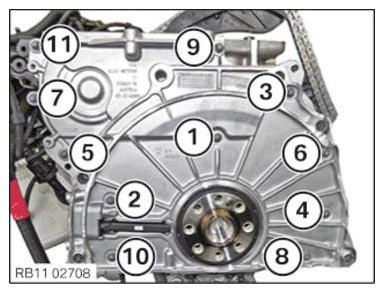

- Replace screws (1) to (11).
Parts: Screws
- Tighten the screws in order from (1) to (11).TIGHTENING TORQUE SPECIFICATION
Rear timing case cover on crankcase M6 x 31

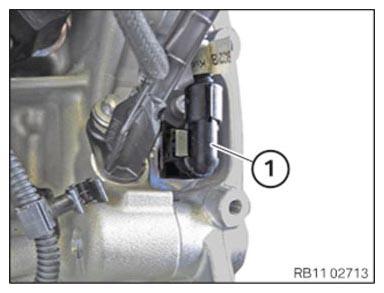

Replace screws.Joining torque 8 Nm Angle of rotation 90° - Connect connectors (1) and lock.
