Remove The Lower Right Engine Bulkhead

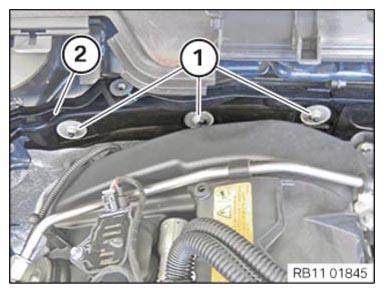

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

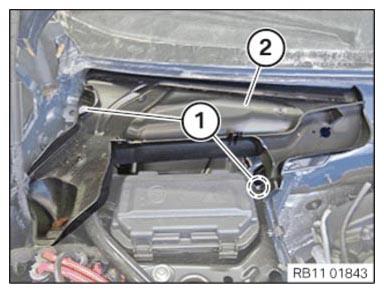

Loosen nuts (1).
Remove the engine bulkhead (2).
Courtesy of BMW OF NORTH AMERICA, INC.

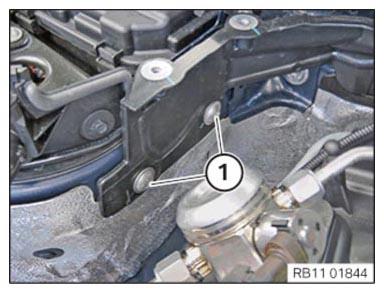

Loosen screws (1).
Remove the attachment part (2).
Courtesy of BMW OF NORTH AMERICA, INC.
