Removing Intake Adjuster

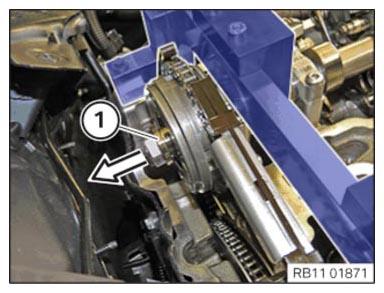

Remove VANOS central valve (1) of the intake side in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.

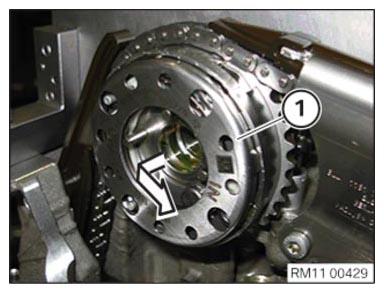

Remove intake adjuster (1) from the intake camshaft and feed out from the rear of the timing chain.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
