Removing The Center Underbody Protection

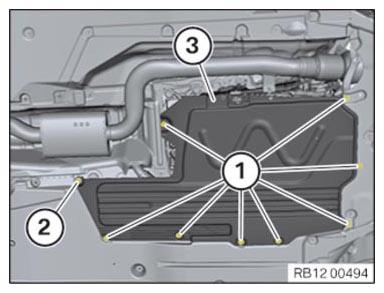

Loosen screws (1).
Loosen nut (2).
Turn the center underbody protection (3) clockwise on the holder and detach it.
Guide the center underbody protection (3) out and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
