Installing intake adjuster of cylinders 7 to 12

If applicable, replace the intake adjuster (1) .
Parts: Intake adjuster

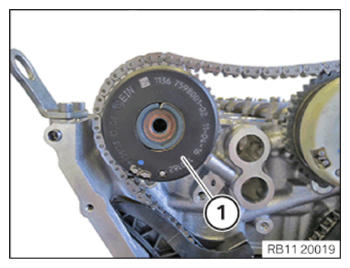

Position the intake adjuster (1) with the timing chain on the intake camshaft.
The intake cam phaser is marked with "EIN" .

The intake cam phaser (1) can be positioned freely on the camshaft.

Courtesy of BMW OF NORTH AMERICA, INC.
