41 00... Use Of Sabre Saws

WARNING: Always wear safety goggles and protective gloves for your own safety.

Attention!

Exercise caution when handling sharp-edged tools (risk of damage to carbon parts).

Attention!

Follow the individual repair instructions!

Protect inner and outer working area (body, trim panels, cables etc.) against damage.

Required tool:

G11145965Courtesy of BMW OF NORTH AMERICA, INC.

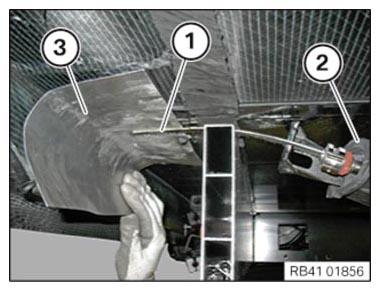

The freely swinging saw blade tip (1) of sabre saw (2) may damage other components.

Protect components with panel (3).

An assistant holds the panel in place.

G11145966Courtesy of BMW OF NORTH AMERICA, INC.
