11 61 008 Removing and installing intake neck (W20)

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

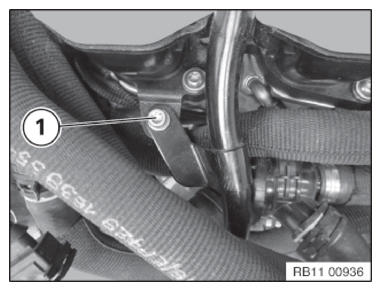

Release screw (1).

Tightening torque: 11 43 1AZ .

Fig 1: Identifying Guide Tube Screw

Courtesy of BMW OF NORTH AMERICA, INC.

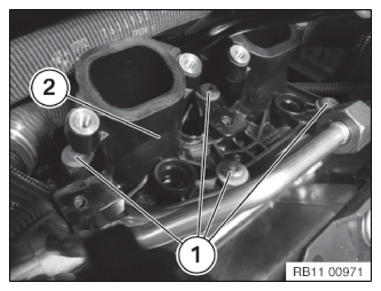

Release screws (1).

Remove intake neck.

Tightening torque: 11 61 2AZ .

Fig 2: Identifying Intake Neck Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

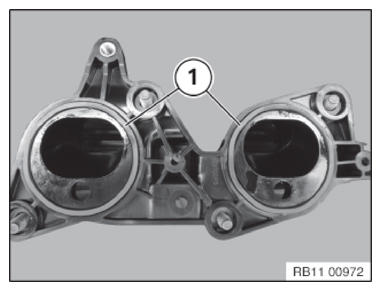

Replace sealing rings (1).

Fig 3: Identifying Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
