Install New Gasket

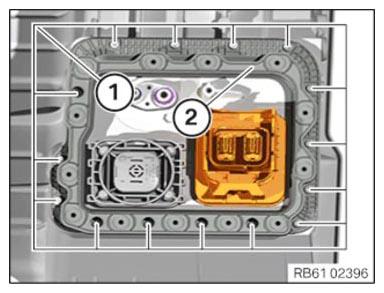

- Fit the seal (2) and tighten screws (1).
TIGHTENING TORQUE SPECIFICATION
| Seal to lower housing section |
M5x18
Replace screw. |
Tightening torque |
6.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
