Delivery Stop: Program Control Units (DME) (SI B12 07 20)

VOLUNTARY EMISSIONS RECALL 19E-A04: PROGRAM CONTROL UNITS - DME

SERVICE CAMPAIGN BULLETIN

MODEL

SERVICE INFORMATION

Please perform the procedure outlined in this Service Information on all affected vehicles before customer delivery. In the event the customer has already taken delivery of the vehicle, please perform the procedure the next time the vehicle is in the shop.

This Service Information Bulletin (Revision #) replaces SI BXX XX XX dated Month Year.

What's New  (Specific text highlighted):

• Bulletin Updated to a voluntary emissions recall
• Affected Vehicles section updated
• Entire content revised except Model

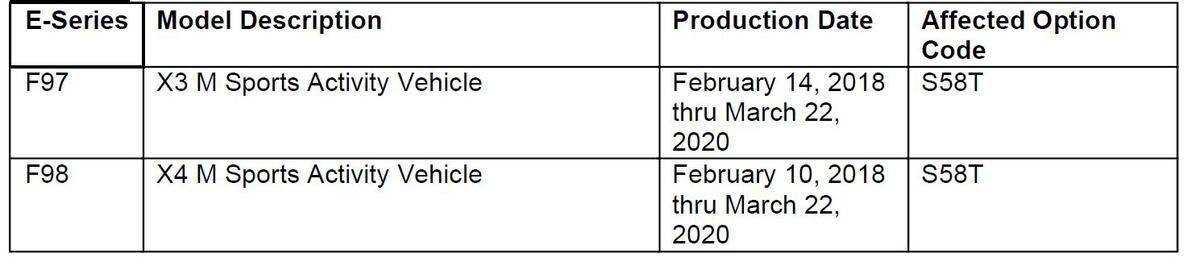

AFFECTED VEHICLES

Do not deliver to a customer, a New, Certified Pre-Owned or Used vehicle subject to a Delivery Stop, until the vehicle is repaired. Do not use or sell replacement equipment/parts subject to a Recall

First check if a Recall Completion Label, SD 92-435 for this campaign is already attached to the underside of the hood on the right (passenger) rear close to the windshield.

If the label is present, the Campaign has already been performed and no further action is necessary.

Affected vehicles which require this Recall Campaign to be completed will show it as "Open" when checked either in AIR, the "Service Menu" of DCSnet (Dealer Communication System) or with the ISPA NEXT.

SITUATION

BMW AG has issued a Delivery Stop (effective March 5, 2020) on certain Model Year 2020 BMW vehicles that were produced starting on February 14, 2018. This Delivery Stop has been changed to a Voluntary Emissions Recall.

CAUSE

An error in the digital motor electronics (DME) onboard diagnostic (OBD) software data status.

CORRECTION

Program the vehicle using ISTA 4.22.2x  or higher.

PROCEDURE

Program the vehicle using ISTA 4.22.2x  or higher (released March 2020).

Model	Target Integration level
F97 (X3 M Sports Activity Vehicle)	S15A-20-03-532  or higher
F98 (X4 M Sports Activity Coupe)

Note that ISTA will automatically reprogram and code all programmable control modules that do not have the latest software.

Always connect a BMW-approved battery charger/power supply ( SI B04 23 10  ) when performing programming.

For information on programming and coding with ISTA, refer to DealerSpeed/TIS/Technical Documentation/Diagnostics and Programming/Programming Documentation.

PARTS INFORMATION

Refer to SI B10 02 15  for label ordering information

LABEL INSTRUCTIONS

After the vehicle has been checked and corrected, obtain a label (SD 92-435) and with the indelible marker provided, legibly print the Recall name, Recall number, and dealer code (5 digits) on the "Emissions Recall Campaign Completed Label" (see illustration). Peel the label from its backing and affix it to the right (passenger) rear side of the hood in the engine compartment, close to windshield.

For California centers only: It is required by the California Code of Regulations that an executed orange "Vehicle Emission Recall - Proof of Correction" certificate (SD92-084, see illustration) be provided to each customer (for vehicles registered in the state of California), once the Recall on his or her vehicle has been completed.

WARRANTY INFORMATION

During this workshop visit, the affected vehicle may also show one or more programming and encoding Technical Campaign repairs open where the claim submission information is available, the programming and encoding procedure may only be invoiced one time.

Update the vehicle to the required I-level or higher either by performing or submitting for this or one of the other open Technical Campaigns.

When applicable, please be sure to perform any additional work (before and/or after) these repairs require and/or close the remaining programming and encoding Technical Campaign repairs as outlined in the corresponding Service Information Bulletin.

Reimbursement for this Voluntary Emissions Recall action will be via normal claim entry utilizing the work package information below that applies:

Defect Code:

0012230500

F97 F98 S58T Program control units (DME)

Completion before the first vehicle delivery to a customer or the vehicle is already in the workshop.

Work Pkg	Labor Operation	Description (Plus work)	Labor Allowance
# 1	00 68 998	Programming and encoding the vehicle control units to the specified Target integration level or higher (includes connecting an approved battery charger/power supply and performing a vehicle test)	8 FRU
Or:
# 2	00 68 999	Programming and encoding the vehicle control units was performed in conjunction with another campaign/repair, either prior to or during this workshop visit (vehicle is already at the specified "Target" integration level or higher, no repair is necessary)	1 FRU

Or:
