(Remove intermediate pipe)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
(Remove intermediate pipe)
WARNING:
Hot surfaces
Risk of burning!
Perform all work only on components that have cooled down
Version A:

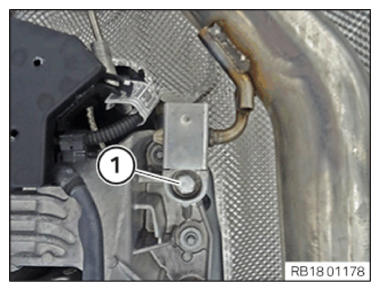

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.

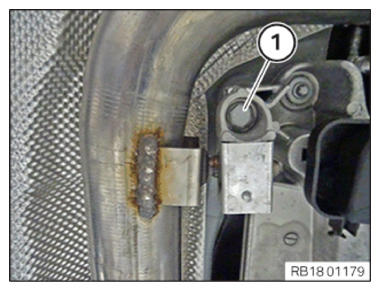

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

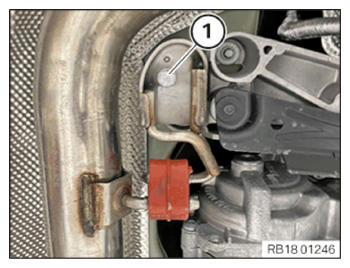

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.

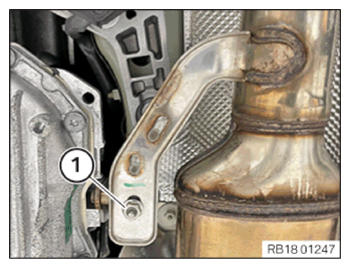

Release nut (1)
Courtesy of BMW OF NORTH AMERICA, INC.

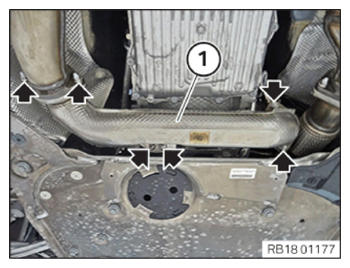

Unscrew the nuts (arrows)
Feed the intermediate pipe (1) out and remove
Courtesy of BMW OF NORTH AMERICA, INC.
