Install backrest side section, left
Install backrest side section

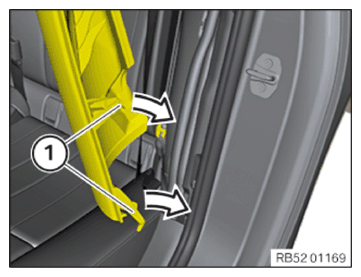

- Feed in the guides (1) of the backrest side section in arrow direction at the bottom.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

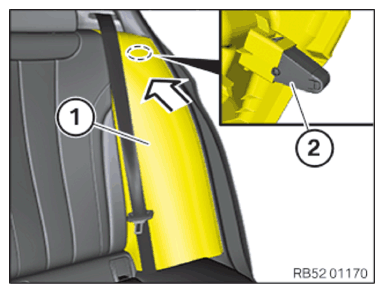

- Clip in the backrest side section (1) at the top in the arrow direction on to the detent (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
