Installing fog light support
NOTE:
Description is for left component only. Procedure on the right side is identical.

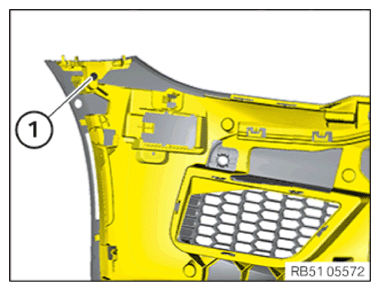

Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Guide to the side on fog light holder
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

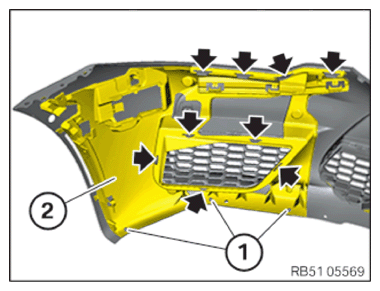

Engage fog light support (2) to the latch mechanism (arrows).
Mount the expanding rivets (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
