Removing the controller

Preliminary work

• Refer to REMOVING THE CENTER CONSOLE TRIM .
• Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .

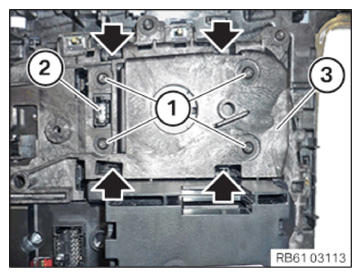

• Loosen screws (1).
• Release the latch mechanisms (arrows).
• Remove the iDrive Controller (2) from the control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.
