Installing the low beam sensor

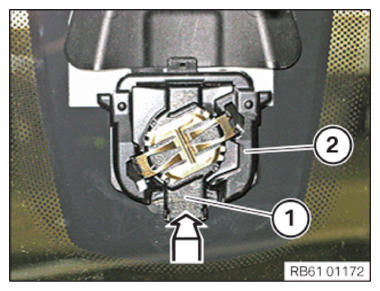

• Feed the low beam sensor (1) in the bracket (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

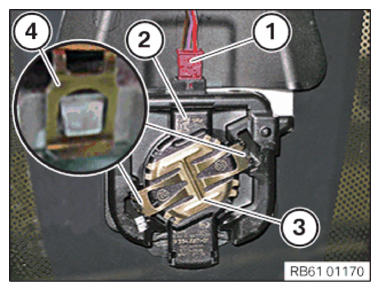

• Press in the low beam sensor (2) at the retaining spring (3) in the center.
• Successively press down the retaining springs (4) on each side to lock it.
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

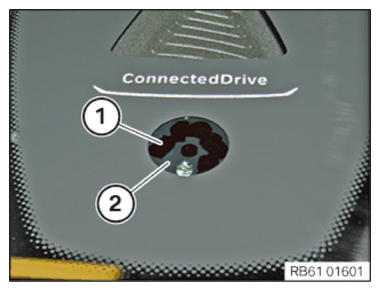

• Check if air pockets are visible.

  Visible shades (1) and (2) are not air pockets but rather the optical element of the sensor. The shades do not represent any functional limitation.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRRORS .
• Refer to INITIALIZING RAIN, LIGHT AND SOLAR SENSOR .
