Installing coat hook

Check

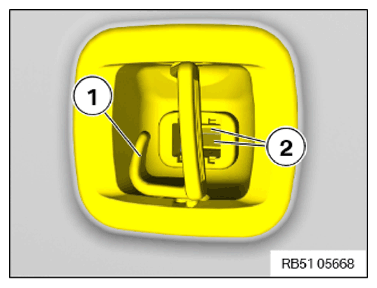

• Check guide pin (1) and retaining clip (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Guide pin (1) or retaining clip (2) is damaged.

Measure

• Replace coat hook.

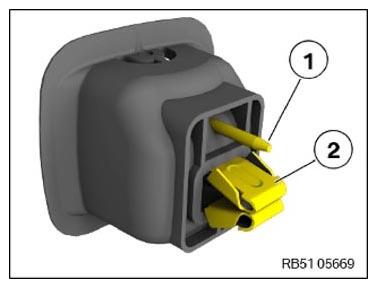

• Position coat hook (1) on headliner and insert.
• Correctly lock coat hook (1) in place with retaining clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
