Remove front spring strut
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

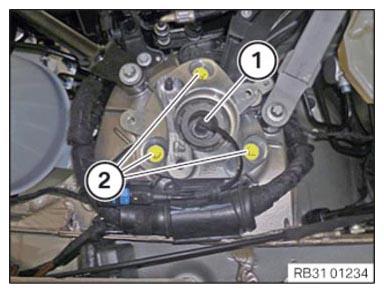

- Disconnect plug connection (1).
- Loosen screws (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

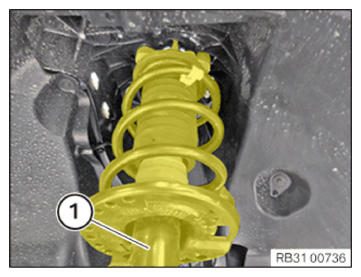

- Remove the front spring strut (1) complete with swivel bearing.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
