Remove the control unit for the power tailgate
Preliminary work
Refer to
DISCONNECTING ALL BATTERY GROUND LEADS
.
Refer to
REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT
.

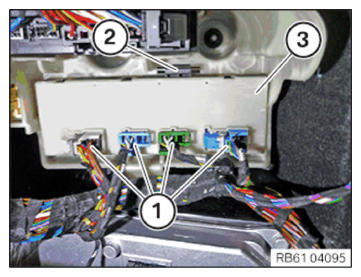

Unlock and disconnect plug connections (1).
Unlock the detent (2) and remove the control unit for the power tailgate (3),
Courtesy of BMW OF NORTH AMERICA, INC.
