Installing left storage compartment

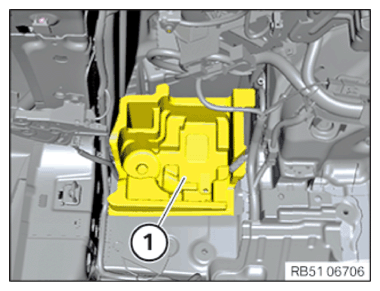

Guide in and correctly position left storage compartment (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

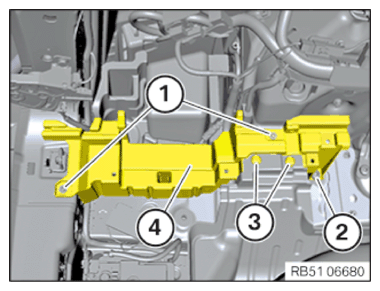

Install cover (4) .
Mount the expanding rivets (3) .

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Cover to side member
Oval-head screw	Tightening torque	8.0 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

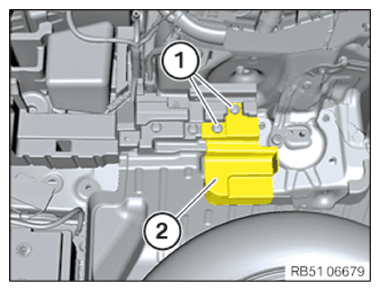

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Cover to side member
Screw TS5x16	Tightening torque	3.0 Nm
Plastic nut	Tightening torque	3.0 Nm

Install cover (2) and mount the expanding rivets (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
