Installing the complete exhaust system
CAUTION:
Component with heavy weight
.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

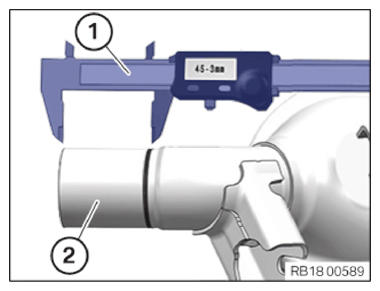

- At the catalytic converter exhaust pipe (2), use a measuring tool for centering (1) 45 mm and then mark the area with a touch-up stick (if applicable, temperature resistant).

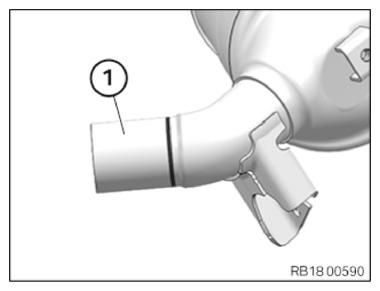

- Clean the exhaust pipe (1) of the catalytic converter with a wire brush.

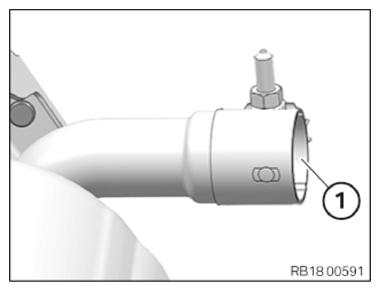

- When reinstalling the same rear silencer: Clean the exhaust pipe (1) of the rear silencer with a wire brush.

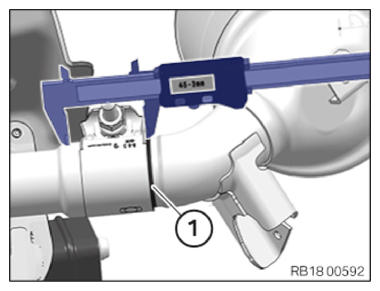

- Slide the exhaust pipe of the rear silencer onto the exhaust pipe of the catalytic converter up to the mark (1).
- If necessary, replace clamp.
Parts: cl
- Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATIONS
| Exhaust system to catalytic converter | ||
|---|---|---|
| Ribbon cable clamp If necessary, replace clamp. |
Tightening torque | 33 Nm |
- Check rubber mount for damage, replace if necessary.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Rubber mount on exhaust bracket | ||
|---|---|---|
| M8 screw | Tightening torque | 13 Nm |
- Check rubber mount for damage, replace if necessary.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Rubber mount on exhaust bracket | ||
|---|---|---|
| M8 screw | Tightening torque | 13 Nm |
- Mount the heat shields.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Screw M6 | Tightening torque | 8 Nm |
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Nut M6 | Tightening torque | 3 Nm |
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Screw M6 | Tightening torque | 8 Nm |
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Nut M6 | Tightening torque | 3 Nm |
- Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Nut M6 | Tightening torque | 3 Nm |
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Screw M6 | Tightening torque | 8 Nm |
