67 11 595 Removing and installing/replacing controller drive for charging power socket

Special tools required:

24 05 562

Preliminary work needed:

Refer to REMOVING RIGHT REAR QUARTER PANEL .

Removal:

US version

with SA4U7

Fast charging with direct current

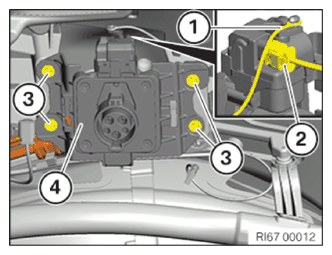

Disengage tensioning strap (1) for emergency release mechanism.

Unfasten plug connection (2) and disconnect.

Loosen screws (3).

Fold the charging socket (4) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

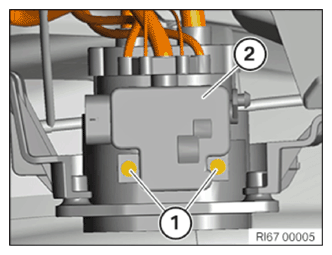

Release screws (1) with special tool 24 05 562 .

Remove controller drive for locking the charging socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

European version

with SA4U7

Fast charging with direct current

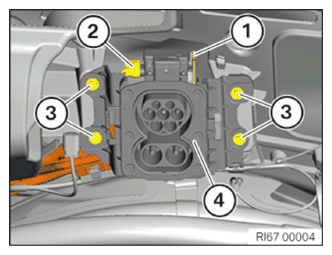

Disengage tensioning strap (1) for emergency release mechanism.

Unfasten plug connection (2) and disconnect.

Loosen screws (3).

Fold the charging socket (4) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

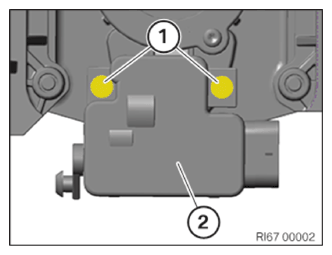

Release screws (1) with special tool 24 05 562 .

Remove controller drive for locking the charging socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Chinese version

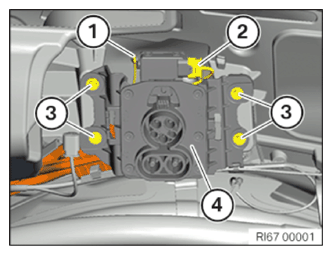

Disengage tensioning strap (1) for emergency release mechanism.

Unfasten plug connection (2) and disconnect.

Loosen screws (3).

Fold the charging socket (4) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

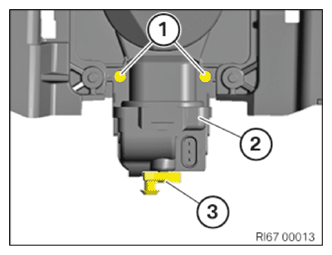

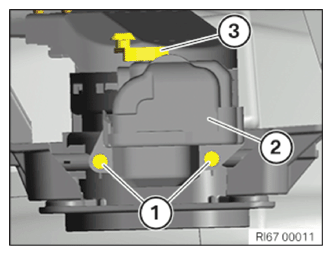

Release screws (1) with special tool 24 05 562.

Remove controller drive for locking the charging socket (2).

Remove lever (3).

Courtesy of BMW OF NORTH AMERICA, INC.

European version

without SA4U7

Fast charging with direct current

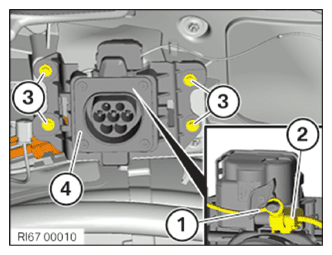

Disengage tensioning strap (1) for emergency release mechanism.

Unfasten plug connection (2) and disconnect.

Loosen screws (3).

Fold the charging socket (4) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

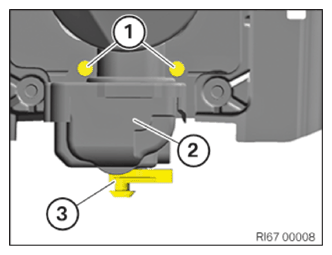

Release screws (1) with special tool 24 05 562 .

Remove controller drive for locking the charging socket (2).

Remove lever (3).

Courtesy of BMW OF NORTH AMERICA, INC.

US version

without SA4U7

Fast charging with direct current

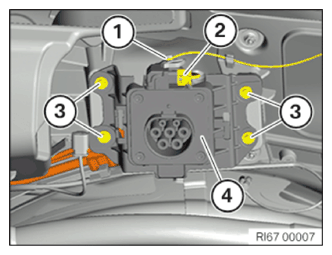

Disengage tensioning strap (1) for emergency release mechanism.

Unfasten plug connection (2) and disconnect.

Loosen screws (3).

Fold the charging socket (4) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with special tool 24 05 562 .

Remove controller drive for locking the charging socket (2).

Remove lever (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

US version

with SA4U7

Fast charging with direct current

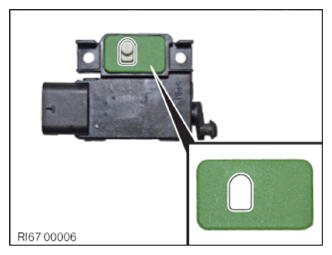

NOTE: During replacement: Install supplied gasket.
Ensure that gasket is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Position controller drive for locking the charging socket (2) on the charging socket.

Tighten down screws (1) with special tool 24 05 562 .

Courtesy of BMW OF NORTH AMERICA, INC.

Position charging socket (4) in the holder.

Tighten down screws (3).

Connect connector (2).

Attach tensioning strap (1) for emergency release mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

European version

with SA4U7

Fast charging with direct current

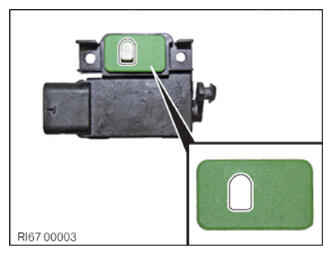

NOTE: During replacement: Install supplied gasket.
Ensure that gasket is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Position controller drive for locking the charging socket (2) on the charging socket.

Tighten down screws (1) with special tool 24 05 562 .

Courtesy of BMW OF NORTH AMERICA, INC.

Position charging socket (4) in the holder.

Tighten down screws (3).

Connect connector (2).

Attach tensioning strap (1) for emergency release mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

Chinese version

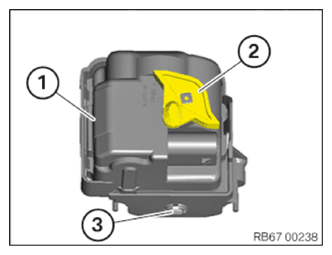

NOTE: Controller drive for locking the charging socket (1) is found in the unlocked installation position as a new part.
The locking pin (3) is retracted.
As shown in the diagram, lever (2) must be positioned on the unlocked controller drive for locking the charging socket (1).
In the event of incorrect assembly a blockage can occur.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect lever (3) so that it locks noticeably.

Position controller drive for locking the charging socket (2) on the charging socket.

Tighten down screws (1) with special tool 24 05 562 .

Courtesy of BMW OF NORTH AMERICA, INC.

Position charging socket (4) in the holder.

Tighten down screws (3).

Connect connector (2).

Attach tensioning strap (1) for emergency release mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

European version

without SA4U7

Fast charging with direct current

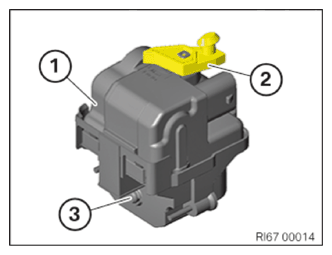

NOTE: Controller drive for locking the charging socket (1) is found in the unlocked installation position as a new part.

The locking pin (3) is retracted.

As shown in the diagram, lever (2) must be positioned on the unlocked controller drive for locking the charging socket (1).

In the event of incorrect assembly a blockage can occur.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect lever (3) so that it locks noticeably.

Position controller drive for locking the charging socket (2) on the charging socket.

Tighten down screws (1) with special tool 24 05 562 .

Courtesy of BMW OF NORTH AMERICA, INC.

Position charging socket (4) in the holder.

Tighten down screws (3).

Connect connector (2).

Attach tensioning strap (1) for emergency release mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

US version

without SA4U7

Fast charging with direct current

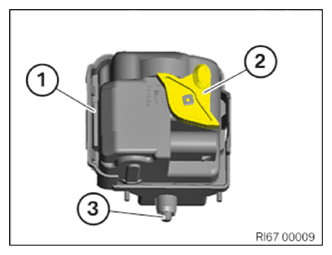

NOTE: Controller drive for locking the charging socket (1) is found in the unlocked installation position as a new part.

The locking pin (3) is retracted.

As shown in the diagram, lever (2) must be positioned on the unlocked controller drive for locking the charging socket (1).

In the event of incorrect assembly a blockage can occur.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect lever (3) so that it locks noticeably.

Position controller drive for locking the charging socket (2) on the charging socket.

Tighten down screws (1) with special tool 24 05 562 .

Courtesy of BMW OF NORTH AMERICA, INC.

Position charging socket (4) in the holder.

Tighten down screws (3).

Connect connector (2).

Attach tensioning strap (1) for emergency release mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.
