Removing the lid of electrical machine electronics

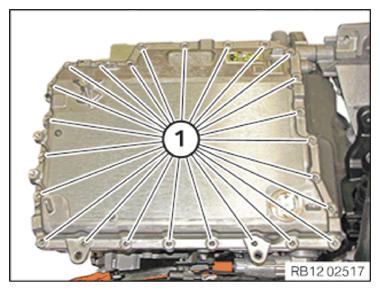

• Loosen screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

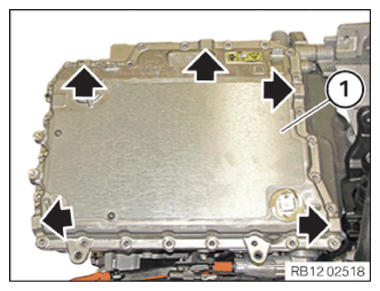

• Raise lid (1)  at the positions indicated with an arrow using a large screwdriver.
• Remove the lid (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
