Install eccentric shaft

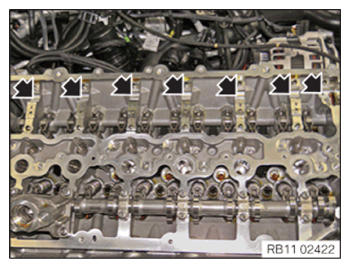

- Check all needle bearings (arrows) of the eccentric shaft for ease of movement.
- If the needle bearings are stiff, replace the eccentric shaft.
- Clean all bearing positions in cylinder head and coat with motor oil.

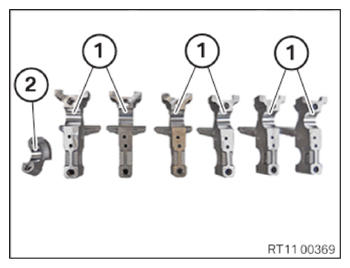

- Clean bearing positions (1) of the bearing brackets and coat with motor oil.
- Clean the bearing position (2)
of the bearing cap and coat with motor oil.

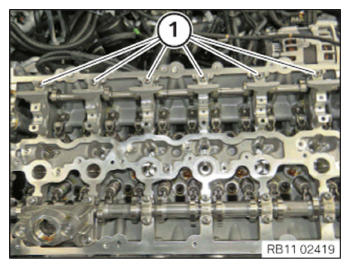

- Check all guide bushings (1)
for damage and replace faulty guide bushings (1)
.

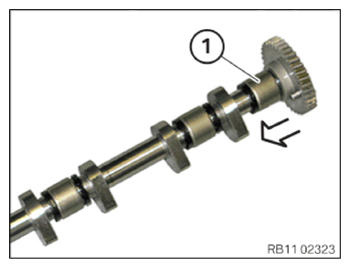

- Slide the needle bearing (1)
up to the stop in the arrow direction before installing the eccentric shaft.

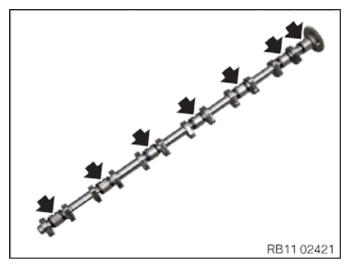

- Oil all needle bearings of the eccentric shaft (1) .

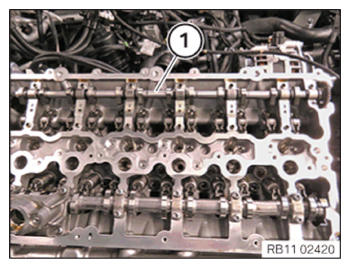

- Insert eccentric shaft (1)
into the cylinder head.NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets .
If the bearing shells and bearing brackets are installed incorrectly, then engine damage can occur .- Always install all bearing shells and bearing brackets in the same position from which they were removed.
- Install the bearing bracket.
All bearing brackets must be installed again in the same position from where they were removed.

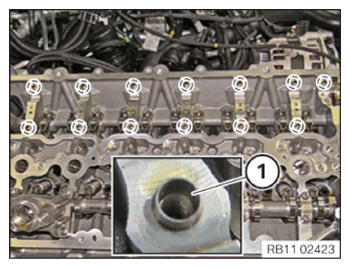

- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

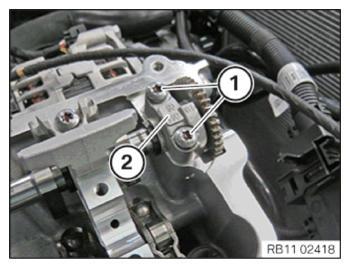

Eccentric shaft to bearing bracket/cylinder head M6X35 8.8 Tightening Torque 8.6 Nm - Install it with a bearing cap provided with a stop (1) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Eccentric shaft to bearing bracket/cylinder head | ||
|---|---|---|
| M6X35 8.8 | Tightening Torque | 8.6 Nm |
