Ignition Timing

Set timing with distributor vacuum line disconnected and engine idling.

V6 5° BTDC
V8 2 1/2° BTDC
Fig 1: V6 Firing Order
G09362269Courtesy of GENERAL MOTORS COMPANY

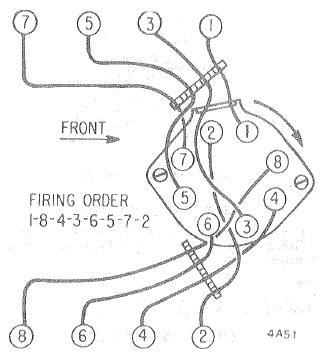

Fig 2: V8 Firing Order
G09362270Courtesy of GENERAL MOTORS COMPANY
