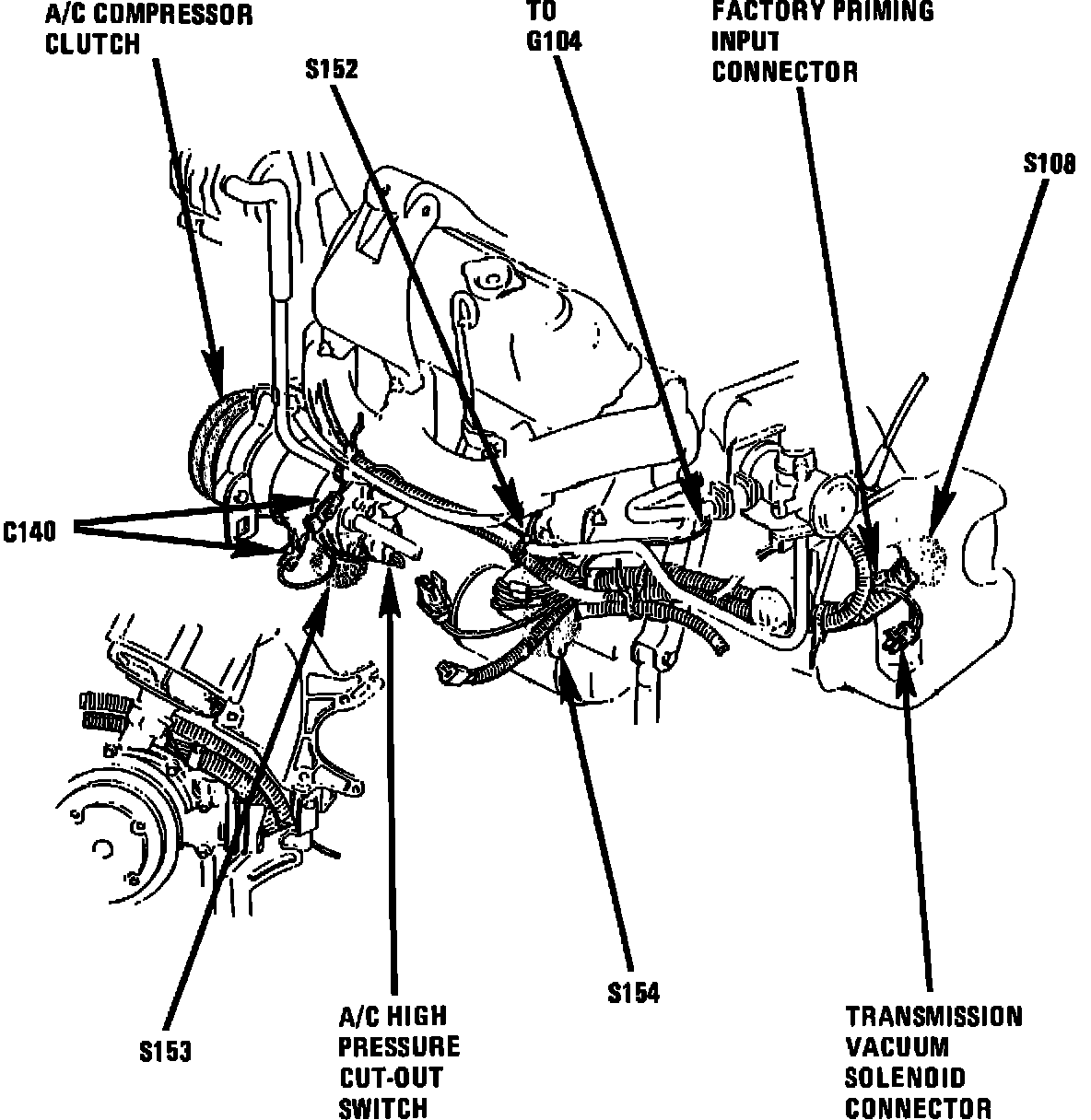

Compressor Clutch: Locations

Front Of Engine.:




RH Side Of Engine, RH Side Of Compressor

Applicable to: 1984-85 Century w/V6-181

Front Of Engine.:




RH Side Of Engine, RH Side Of Compressor

Applicable to: 1984-85 Century w/V6-231
