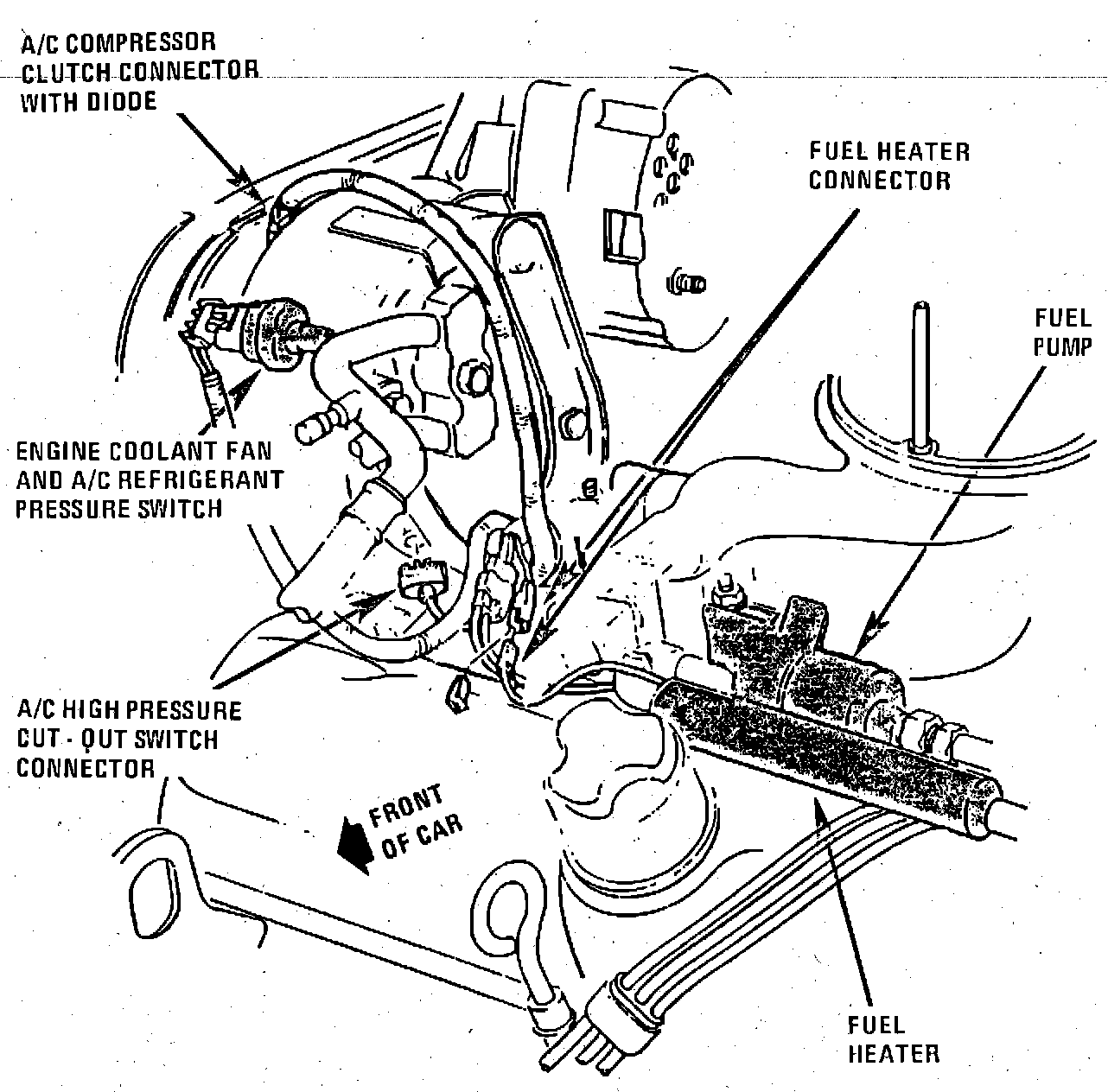

Fuel Pump

RH Front:

Top Front Of Engine, Rear Of Valve Cover

Applicable to: 3.8 Engine. Electra & 98
